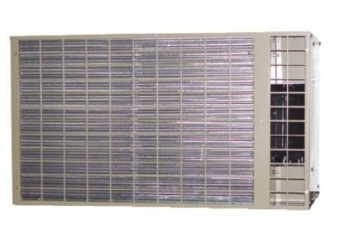

AEROSYS - 1.5 Ton - Condenser TTWC-R18P21 36W x 19H
$8,778
As low as $732/mo with Affirm or Klarna
The Aerosys TTWC-R18P21 is a 1.5-ton thru-the-wall outdoor condensing unit rated at 12 SEER, 208-230V/60Hz/1Ph with R-410A refrigerant. Overall dimensions: 19" H x 36" W x 18.5" D, shipping weight 185 lbs. Electrical specs: RLA 9, LRA 48, MCA 13, MOP 20. Sweat-type connections (3/8" x 3/4"). Manufactured in the USA and compatible with standard NYC wall sleeve openings.
Specifications
| Specification | Value |
|---|---|
| Model | TTWC-R18P21 |
| Capacity | 1.5 Ton |
| BTU | 18,000 |
| SEER | 12 |
| Voltage | 208-230V/60Hz/1Ph |
| Refrigerant | R-410A |
| Dimensions | 19" H x 36" W x 18.5" D |
| Shipping Weight | 185 lbs |
| RLA | 9 |
| LRA | 48 |
| MCA | 13 |
| MOP | 20 |
| Connection Size | 3/8" x 3/4" sweat |
| Type | Thru-Wall Condensing Unit |
| Configuration | Split System |
| Origin | USA |
