Thru-Wall

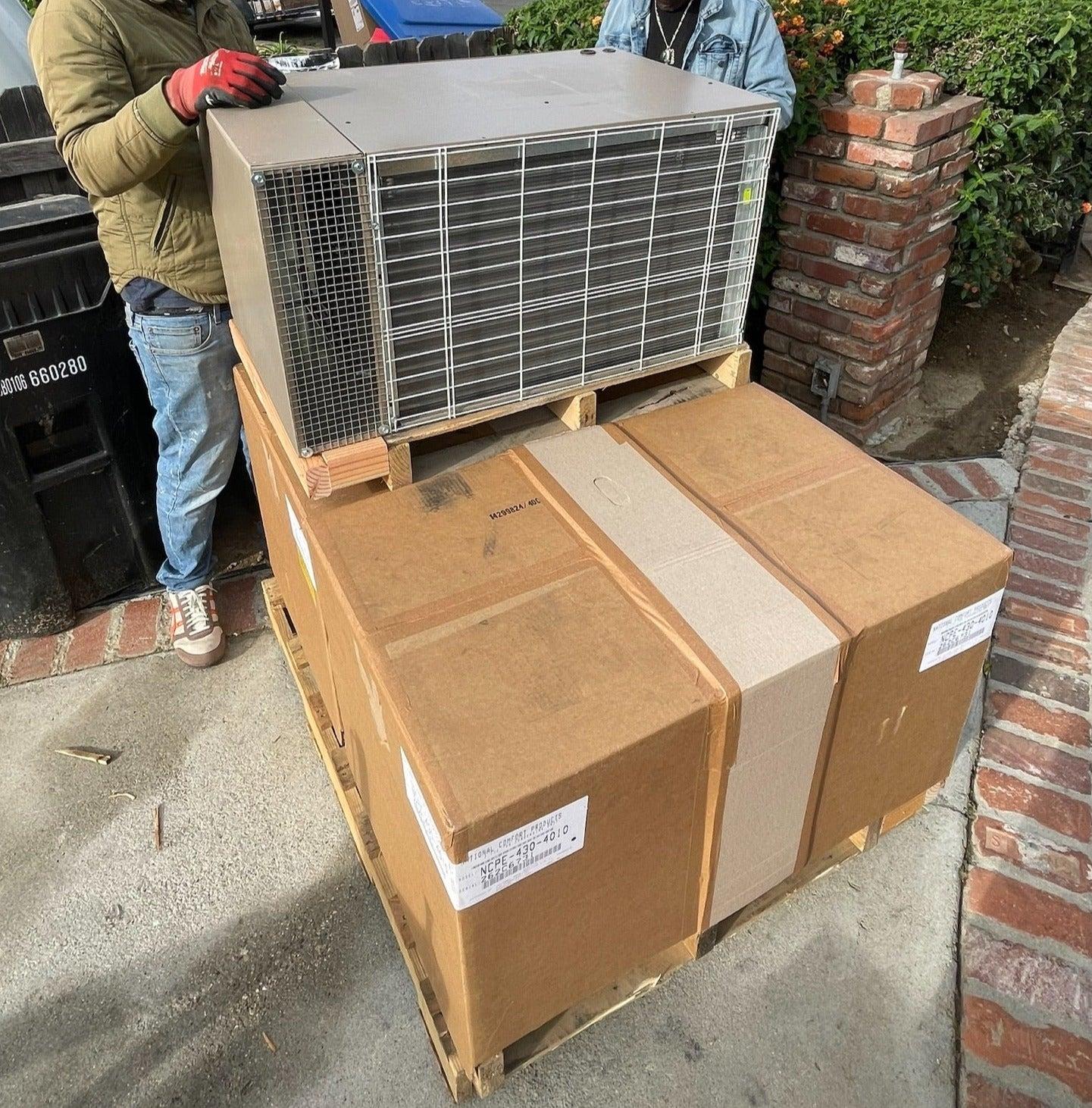

36"W x 19"H 2.0-Ton Thru-Wall Replaces Aerosys TTWC-R24P21, TTWC-R24P21LX, VCU-C-024-1-X, VCU-C-024-1-S
$7,805
As low as $651/mo with Affirm or Klarna
A 2.0-ton thru-wall straight-cool condensing unit sized to fit standard 36" W x 19" H NYC wall sleeve openings. Serves as a direct drop-in replacement for Aerosys TTWC-R24P21, TTWC-R24P21LX, VCU-C-024-1-X, and VCU-C-024-1-S units. Operates at 208-230V/1Ph with R-410A refrigerant. Features a heavy-duty water-resistant cabinet, brass service valves, and a 5-year compressor warranty. NYC approved.
Specifications
| Specification | Value |
|---|---|
| Capacity | 2.0 Ton |
| BTU | 24,000 |
| Voltage | 208-230V/60Hz/1Ph |
| Refrigerant | R-410A |
| Dimensions | 36" W x 19" H x 24" D |
| Shipping Weight | 200 lbs |
| Min. Circuit Ampacity | 17.75 |
| Max. Fuse/Breaker | 30 |
| Fan HP | 0.25 |
| Fan RPM | 1500 |
| Type | Thru-Wall Condensing Unit |
| Configuration | Split System |
| Warranty | 5-year compressor, 2-year parts |
| Replaces | TTWC-R24P21, TTWC-R24P21LX, VCU-C-024-1-X, VCU-C-024-1-S |
