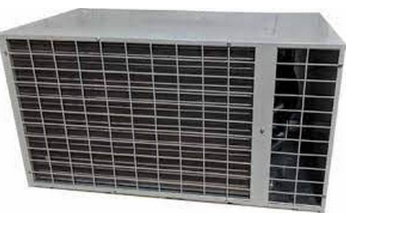

AboveAir -Compact 1.5 Ton Thru-The Wall Condensing Unit 35.5" W x 19" H VCU-C-018-1
AboveAir -Compact 1.5 Ton Thru-The Wall Condensing Unit 35.5" W x 19" H VCU-C-018-1
Low stock: 1 left
Couldn't load pickup availability
This compact condensing unit is designed to fit seamlessly into any space. With a 1.5 ton capacity, it efficiently cools areas without taking up too much room. The thru-the-wall design allows for easy installation and the 35.5" W x 19" H size ensures a perfect fit in most spaces.
Aerosys TW303619 36"W x 19"H 2.5-Ton Thru-Wall Straight Cool Condenser
General Features:
-
Available in 1.5, 2.0 and 2.5 Ton sizes.
-
208-230/1 Electric
-
Heavy-Duty Water Resistant Cabinet
-
R410a High Efficiency Compressor
-
Easy Access Control Box
-
Easy Access to Condenser Fan
-
Long Life Fan Motor
-
High Efficiency Condenser Coil
-
Brass Service Valves
Specifications:
|
Model |
TW303619 |
|
Nominal Capacity |
27,200 Btu/h |
|
Min. AWG wire |
10 |
|
Min. Circuit Ampacity |
17.75 |
|
Max. Fuse/ Breaker |
30 |
|
Compressor (RLA) |
12.8 |
|
Compressor (LRA) |
67.8 |
|
Fan HP |
0.25 |
|
Fan RPM |
1500 |
|
Refrigerant Type |
R-410A |
|
Fan Amps Full load |
1.4 |
|
Voltage Rating |
208/230V / 1 Phase |
|
Coil Face Area |
3.14 |
|
Coil Fin Per Inch |
16 |
Dimensions:
Height (in.): 19”
Width (in.): 36”
Depth (in.): 24”
Shipping Weight: 200 lbs.
Warranty:
5-year compressor, 2-year parts warranty
PLEASE CONTACT US - PRODUCT UNAVAILABLE. CONTACT US FOR REPLACEMENT UNIT
