36"W x 19"H 2.0-Ton Thru-Wall Replaces Aerosys TTWC-R24P21, TTWC-R24P21LX, VCU-C-024-1-X, VCU-C-024-1-S

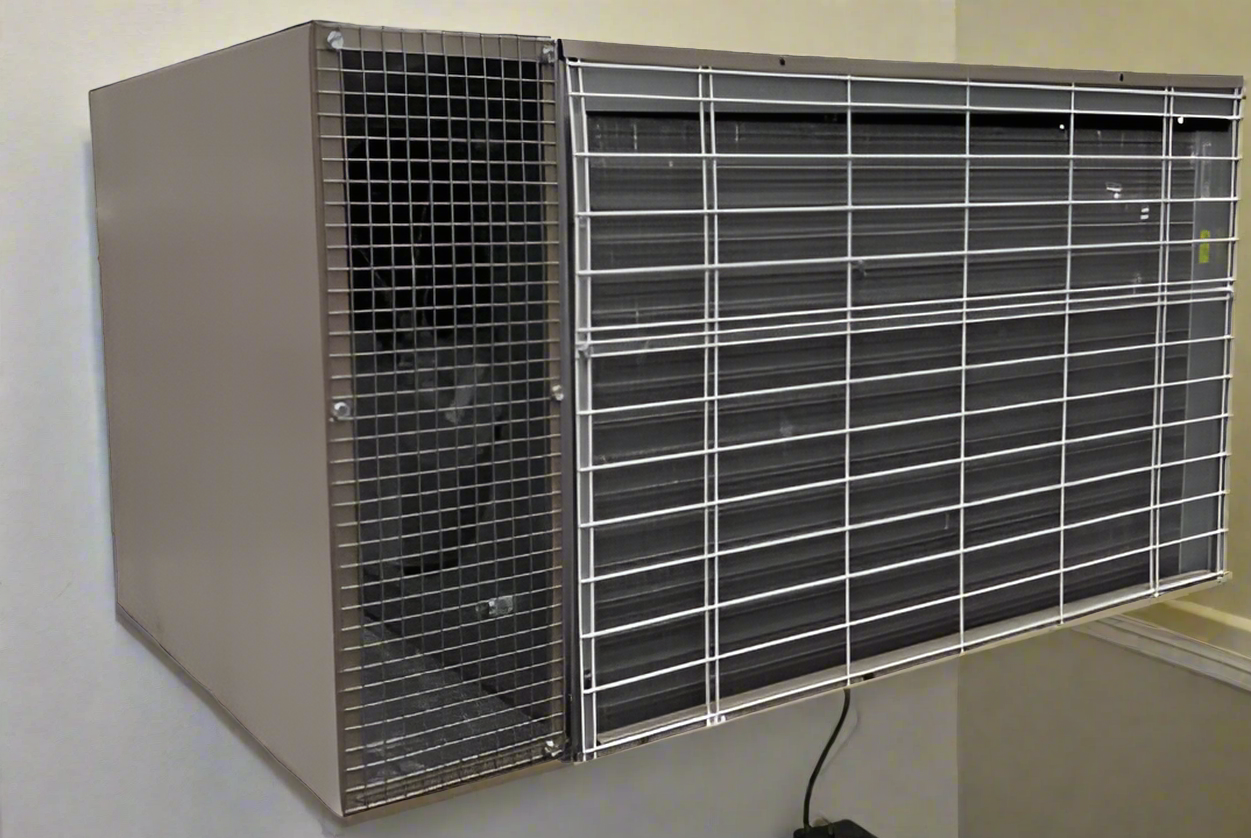

36"W x 19"H 2.0-Ton Thru-Wall Straight Cool Condenser Replaces Aerosys TTWC-R24P21, TTWC-R24P21LX, VCU-C-024-1-X, VCU-C-024-1-S Upgrade your cooling system with a powerful, high-quality solution. This 2.0-Ton Thru-Wall Straight Cool Condenser offers superior performance and replaces a variety of models, including Aerosys TTWC-R24P21, TTWC-R24P21LX, VCU-C-024-1-X, and VCU-C-024-1-S. Trust in our industry expertise to keep your space cool and comfortable.

Aerosys TW303619 36"W x 19"H 2.5-Ton Thru-Wall Straight Cool Condenser

General Features:

• Available in 1.5, 2.0 and 2.5 Ton sizes.

• 208-230/1 Electric

• Heavy-Duty Water Resistant Cabinet

• R410a High Efficiency Compressor

• Easy Access Control Box

• Easy Access to Condenser Fan

• Long Life Fan Motor

• High Efficiency Condenser Coil

• Brass Service Valves

Specifications:



Model	TW303619
Nominal Capacity	27,200 Btu/h
Min. AWG wire	10
Min. Circuit Ampacity	17.75
Max. Fuse/ Breaker	30
Compressor (RLA)	12.8
Compressor  (LRA)	67.8
Fan HP	0.25
Fan RPM	1500
Refrigerant Type	R-410A
Fan Amps Full load	1.4
Voltage Rating	208/230V / 1 Phase
Coil Face Area	3.14
Coil Fin Per Inch	16

Dimensions:

Height (in.): 19”

Width (in.): 36”

Depth (in.): 24”

Shipping Weight: 200 lbs.

Warranty:

5-year compressor, 2-year parts warranty





NYC Approved.
