36"W x 19"H 1.5-Ton Thru-Wall Replaces Aerosys TTWC-R18P21, TTWC-R18P21LX, VCU-C-018-1-S, VCU-C-018-1-X

36"W x 19"H 1.5-Ton Thru-Wall Replaces Aerosys TTWC-R18P21, TTWC-R18P21LX, VCU-C-018-1-S, VCU-C-018-1-X

Regular price $6,989.00 USD
Regular price $8,000.00 USD Sale price $6,989.00 USD
Sale Sold out
Shipping calculated at checkout.

26 in stock

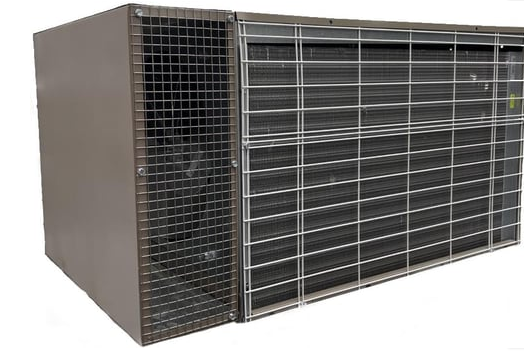

36"W x 19"H 1.5-Ton Thru-Wall Straight Cool Condenser. Replaces Aerosys TTWC-R18P21 TTWC-R18P21LX Upgrade your HVAC system with ease! The 36"W x 19"H 1.5-Ton Thru-Wall Straight Cool Condenser offers a reliable replacement for Aerosys TTWC-R18P21, TTWC-R18P21LX, VCU-C-018-1-S, and VCU-C-018-1-X units. Enjoy improved performance and energy efficiency with our top-quality product.

Aerosys TW303619 36"W x 19"H 2.5-Ton Thru-Wall Straight Cool Condenser

General Features:

  • Available in 1.5, 2.0 and 2.5 Ton sizes.

  • 208-230/1 Electric

  • Heavy-Duty Water Resistant Cabinet

  • R410a High Efficiency Compressor

  • Easy Access Control Box

  • Easy Access to Condenser Fan

  • Long Life Fan Motor

  • High Efficiency Condenser Coil

  • Brass Service Valves


Specifications:




Model

TW303619

Nominal Capacity

27,200 Btu/h

Min. AWG wire

10

Min. Circuit Ampacity

17.75

Max. Fuse/ Breaker

30

Compressor (RLA)

12.8

Compressor  (LRA)

67.8

Fan HP

0.25

Fan RPM

1500

Refrigerant Type

R-410A

Fan Amps Full load

1.4

Voltage Rating

208/230V / 1 Phase

Coil Face Area

3.14

Coil Fin Per Inch

16


Dimensions:

Height (in.): 19”

Width (in.): 36

Depth (in.): 24”

Shipping Weight: 200 lbs.

Warranty:

5-year compressor, 2-year parts warranty

NYC Approved.
